Surface Core Drill-CX800 core drill

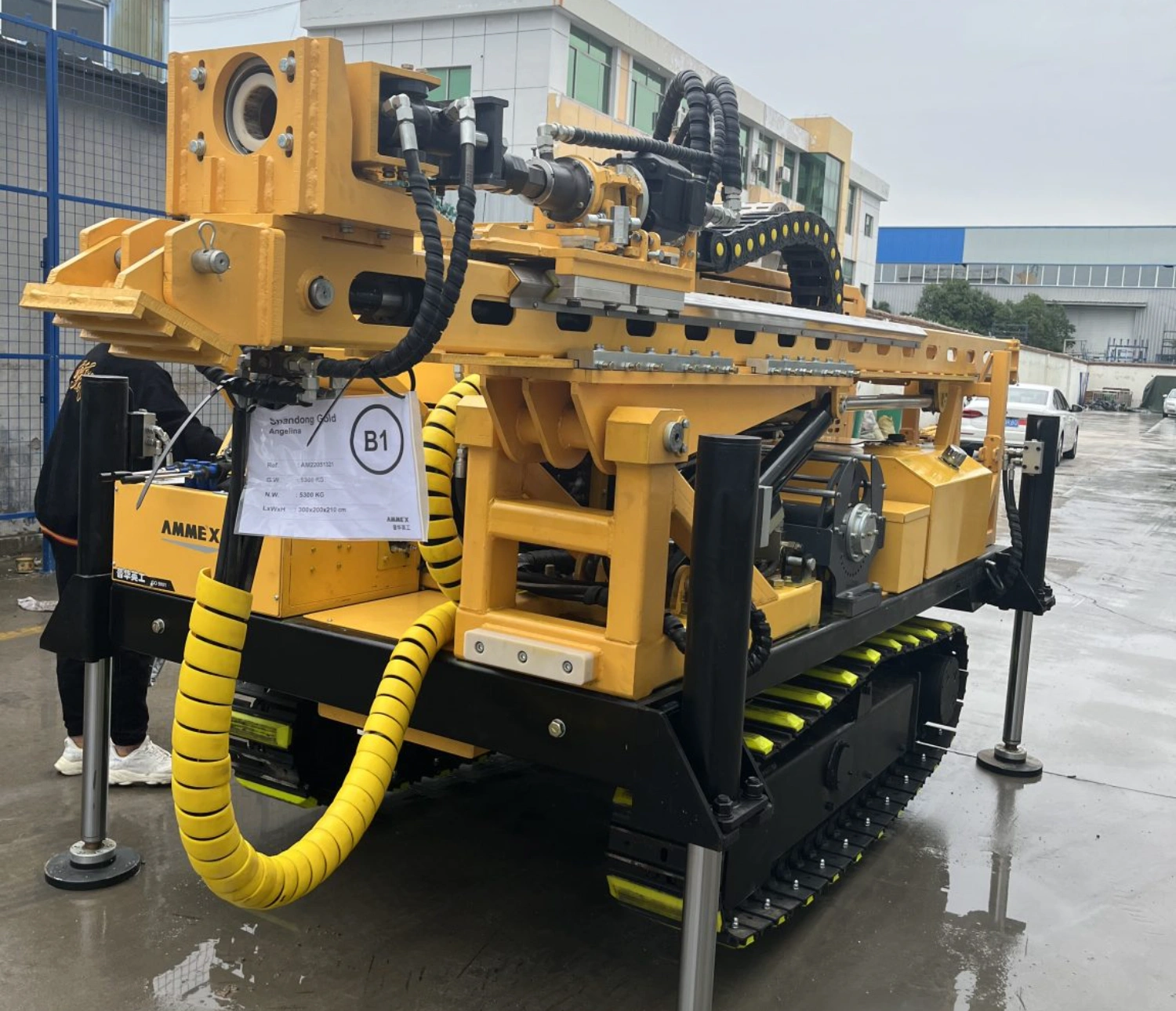

The CX800 is a top-drive core drill rig for medium-depth drilling tasks. The drill is compact-design and highly-maneuverable for worksite setup and transportation. The well-designed hydraulic system and the high-standard working units ensure efficiency for various drilling challenges.

core drill

Product Introduction
Technical data
Send your inquiry

Product Introduction

Ergonomic and user-friendly control panel — enables the operator to work on ground level with all flexibilities to ensure productive drilling.
Foldable telescopic mast — provides easy set-up for working while being compact size for transportation.
Hydraulic levelling jacks — make the rig easy to set up. Radio control for jacking is available as optional feature.
Top-drive rotation head — offers high expectation for performance and reliability.
Weight-lock hydraulic rod holder — provides fast action of rod clamping, improved reliability and reduced service need.
Radio control crawler track — offers mobility and safety.
Association：core drill milwaukee core drill diamond core tools concrete core drill concrete coring diamond core drill hilti core drill diamond core drill bit core drill set

Technical data

Specifications for CX800

Powerpack	Cummins 4BT Diesel Engine
Power rate	120 KW
Rod size	B/N/H/P
Drilling depth	800m (B)
Type of rotation head	Top-drive
Max rotation speed	1200 RPM
Max torque	1200 Nm
Max feeding force	56 KN
Max pullback force	108 KN
Wire line winch	1200m capacity (5mm)
Crawler track	Heavy-duty, radio control
Working weight	5500 Kg
