Petroleum perforating guns serve as critical “gateways” for hydrocarbon extraction, directly impacting well productivity and development efficiency. With advancements in smart perforating technologies (e.g., adaptive pressure control, real-time monitoring), the industry is moving toward more efficient and sustainable reservoir exploitation.
Definition
A petroleum perforating gun is a core tool in oil and gas well completion operations. It uses directional blasting technology to create channels in casing and formations, enabling efficient flow of hydrocarbons from reservoirs to wellbores.
Structural Components

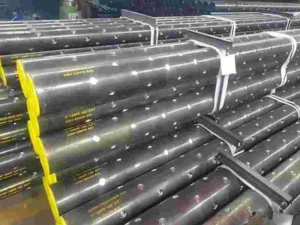

1. Gun Body
– Constructed from high-strength alloy steel to withstand downhole high-temperature and high-pressure environments.
– Houses components such as perforating charges and detonating cords.
2. Perforating Charges
– Utilize shaped charges to generate high-velocity metal jets upon explosion, penetrating casing and rock.
– Types include deep penetration charges, large diameter charges, and composite charges, tailored for different formation requirements.
3. Detonation System
– Triggered by detonating cords or electric detonators to ensure synchronous ignition of multiple charges.
– Some models feature smart ignition devices for precise timing control.
4. Centralizers and Seals
– Centralizers stabilize the gun’s position to avoid collisions with casing.
– Sealing structures prevent well fluid ingress, ensuring reliable blasting.
Working Principle
1. Downhole Positioning: The perforating gun is delivered to the target interval via cables or tubing.
2. Ignition Control: Surface or downhole tools trigger the detonation system, igniting charges sequentially.
3. Rock Penetration: Shaped charge jets (speed >8,000 m/s) penetrate casing, cement sheath, and formations, forming 10–20 mm diameter holes with depths of 0.5–2 meters.
4. Flow Path Creation: Channels connect the wellbore to reservoirs, establishing fluid seepage routes.
Application Scenarios
– Conventional Reservoirs (sandstone, carbonate): Optimize production.
– Unconventional Reservoirs (shale, tight gas): Enhance fracturing effectiveness.
– Horizontal/High-Deviation Wells: Directional perforation for zonal stimulation.
– Mature Well Reactivation: Tap remaining oil through recompletion.
Technical Advantages
1. Efficient Rock Penetration: High-velocity jets ensure deep and clean holes.
2. Precision Control: Adjustable perforation density (shots per meter) and phase angles (90°, 120°, 180°).
3. Reliability: Impact-resistant, high-temperature (≤180°C), and corrosion-resistant designs.
4. Environmental Friendliness: Reduce wellbore contamination and operational costs.
