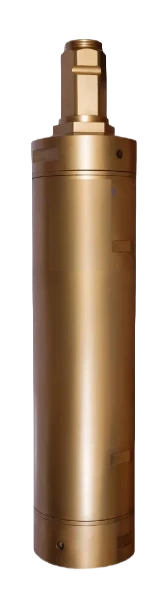

14″ DTH HAMMER

DTH HAMMER

Model:TK14
Matched Bit shank:TK14/NUMA125
Hole Range:350mm-450mm
Application: Water well, deep hole well, oil and gas open hole
drilling, foundation and piling drilling

Product Introduction

Drillsphere 14INCH DTH HAMMER
Drillsphere offers a wide range and versatile of high pressureDTH hammers from 2inch to 28inch. Hammers are a variable for down hole and
blast hole applications and use in nearly all ground conditions.
Like all of other Drillsphere DTH hammers, the 14inch DTH hammer maintains excellent operation pressure and extend service life and overall
is the tool you require to get the maximum out off all your equipment.



Features
·Patented features maximize energy output and reduce service requirements.
. Fewer internal components minimize service requirements.
·High frequency design ensures smooth operation.
. All critical internal components are heat treated under strict control to maximize tool longevity.
·High frequency design ensures smooth operation.

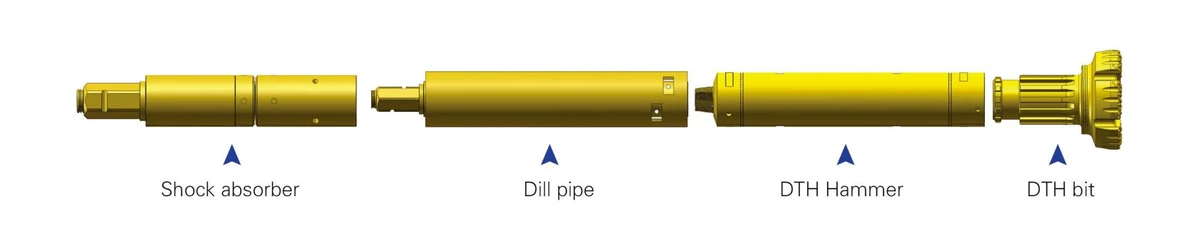

DTH
DTH
Technical data
DTH HAMMER Technical Specification
Hammer Model Bit Shank Foot Valve Connection Thread Hammer OD Hammer length(without bit) Bit range Hammer Weight Air consumption at 18Bar and Rec.rotation speed Work pressure
TK14 TK14 yes API 7 5/8”REG 275mm 1698.5mm 350-450mm 560kg 80m/min   15-40r/min 18-35Bar
TK14 NUMA125 yes API 7 5/8”REG 275mm 1698.5mm 350-450mm 560kg 80m/min   15-40r/min 18-35Bar
